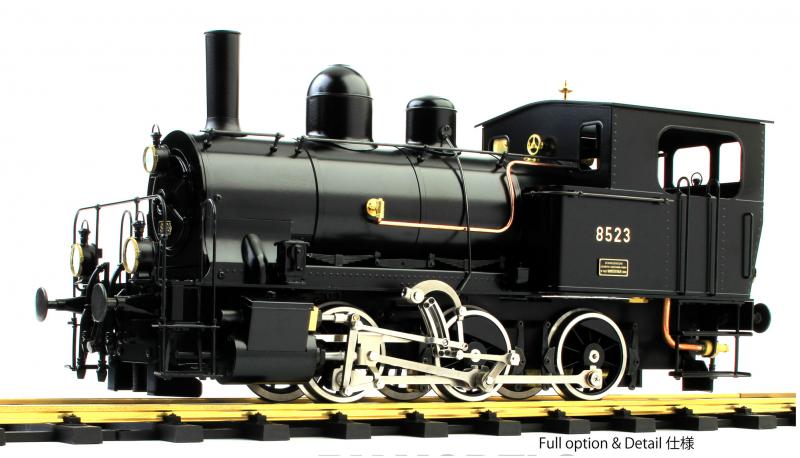

Optional detail parts
How to enjoy?
(NOTE: All freight collect)
STANDARD KIT:JPY270,000∈CHF2390/€2231)
with K2 option KIT:JPY375,000(CHF3371/€3100)
inquiring about SBB Tiger
planned production volume of each version
Version | Qty | KIT | RTR |
Dutch(NS) | 17 | not Available | not Available |
Brown | 17 | not Available | not Available |
Green | 27 | A few Available | not Available |
Blue | 55 | A few Available | not Available |
Note: We Aster Japan keep one factory built up standard version* model of each color variations for display.

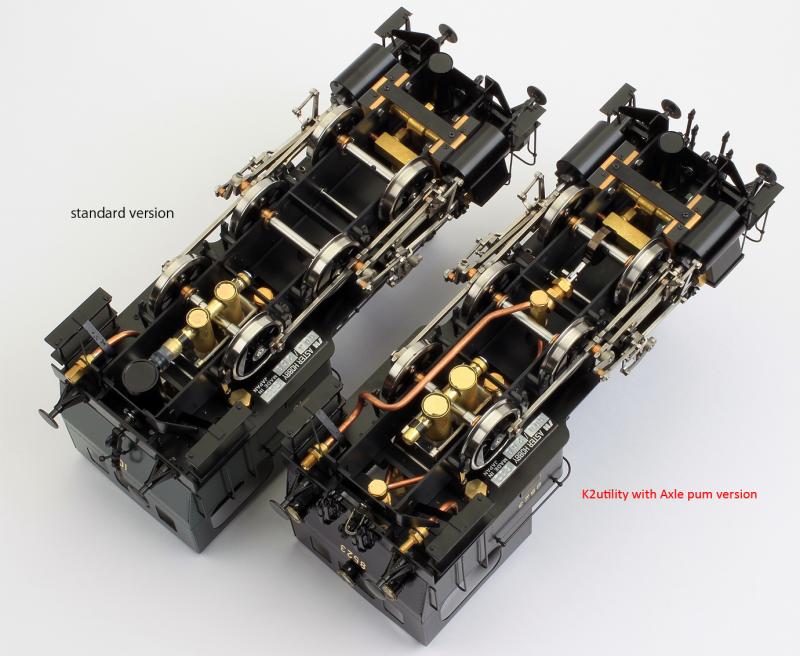

*Standard version has no axle pump with 10mm burner.
| Scale/Gauge |
1/32 , Gague one (45mm) |
| Weight |
1.5kg |
| Length |
272.5mm |
| Width |
94mm |
| Height |
124mm |
| Wheel Arrangement |
0-3-0 |
| Driving Wheel |
32.5mm |
| Pilot and Trailer Truck Wheel |
|
| Tender Truck Wheel |
|
| Axle Driven Pump |
|
| Cylinder |
dia.12mm X 17mm |
| Valve Gear |
Walschaert |
| Boiler Type |
C type with 5 smoke tube |
| Water Capacity |
100cc/90%full |

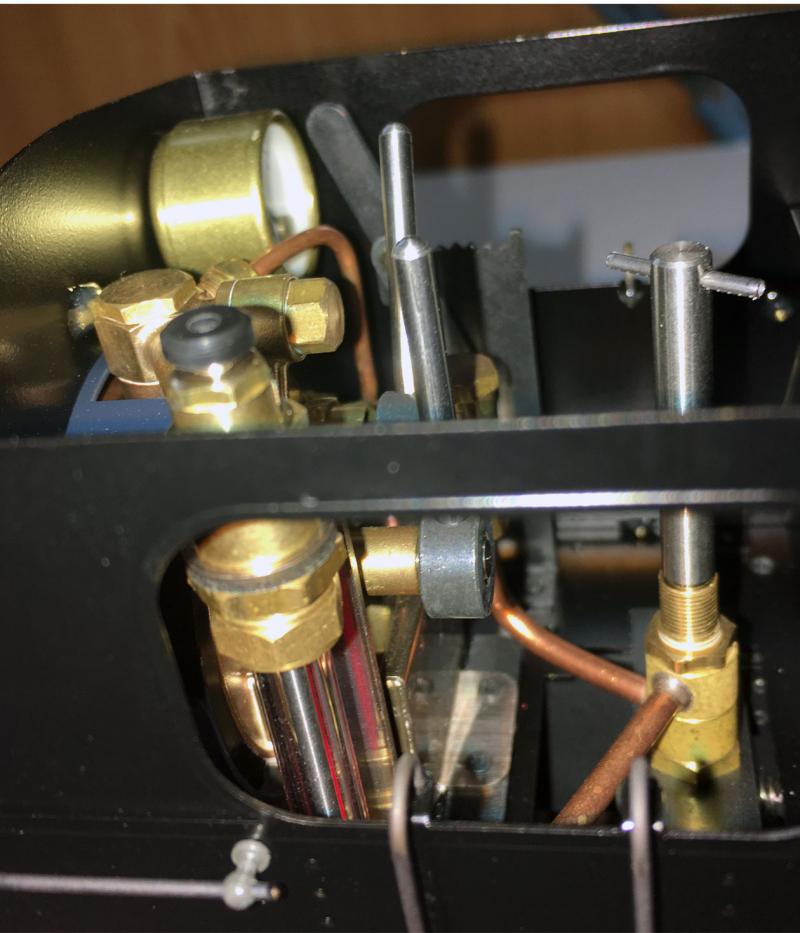

| Boiler Fittings |
Pressure gauge, Blower & Regulator valve, Gauge glass, safety valves
|
| Lubricator |
ROSCOE DISPLACEMENT TYPE |

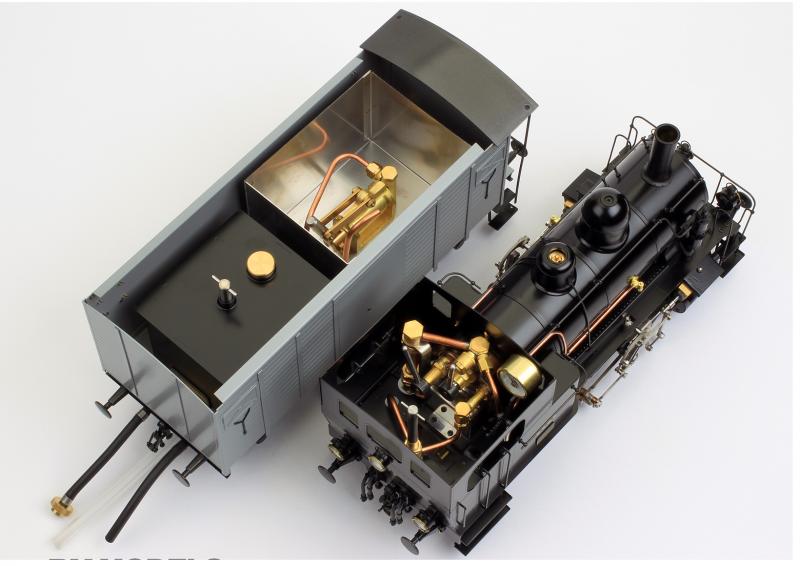

| Tender |
|
Water Tank Capacity
|
|
Fuel
|
Methylated alcohol |
| Fuel Capacity |
80cc/100% full
|
| Minimum Radius |
1.5m |
|
