| Scale/Gauge |
1/32, Gauge one (45mm) |
| Weight |
11.5kg (Engine7.5kg + Tender4.0kg)/25.35lb. |
| Length |
1100mm (43.3in.) |
| Width |
110mm |
| Height |
153mm(6.03in) |
| Wheel Arrangement |
2+8+4 Berkshire |
| Driving Wheel |
53mm(2.08in.) |
| Pilot and Trailer Truck Wheel |
|
| Tender Truck Wheel |
|
| Axle Driven Pump |
Bore 5mm x Stroke 6mm |
| Cylinder |
2 cylinders (Bore 15mm x Stroke 24mm) FUNCTIONAL DRAIN VALVE FITTED |

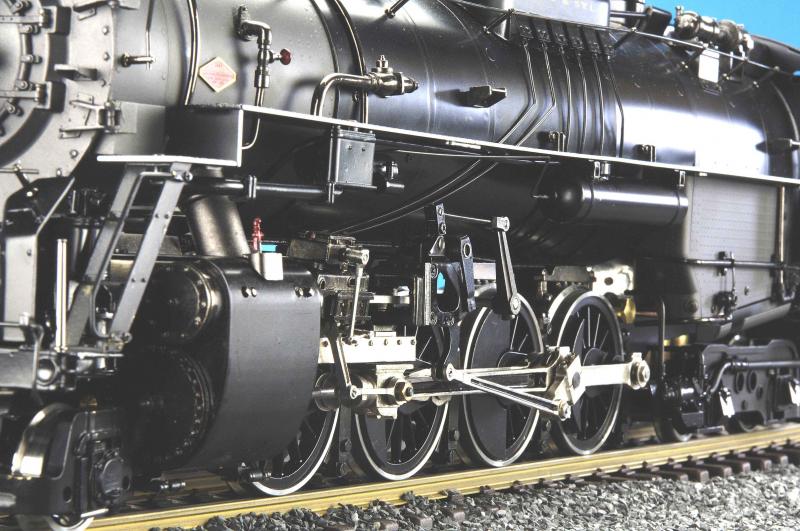

| Valve Gear |
Baker valve gear |
| Boiler Type |
C type |
| Water Capacity |
450cc at 80% full |
| Boiler Fittings |
2 x safety valves, water gauge, pressure gauge, whistle,throttle and blower valves, by-pass valve blow-down valve, super heater |
| Lubricator |
Roscoe |

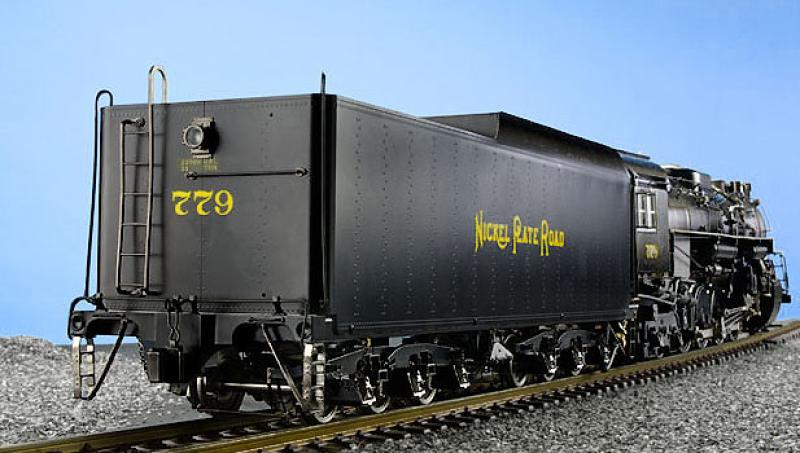

| Tender |
Hand operation pump |
Water Tank Capacity
|
700cc at 80% full |
Fuel
|
Methyl alcohol |
| Fuel Capacity |
500cc at 80% full |
| Minimum Radius |
2m |
|
