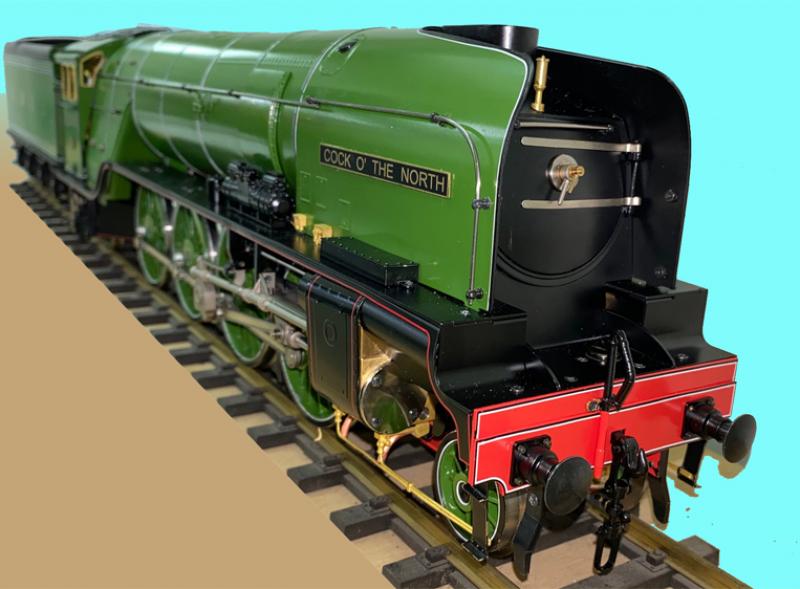

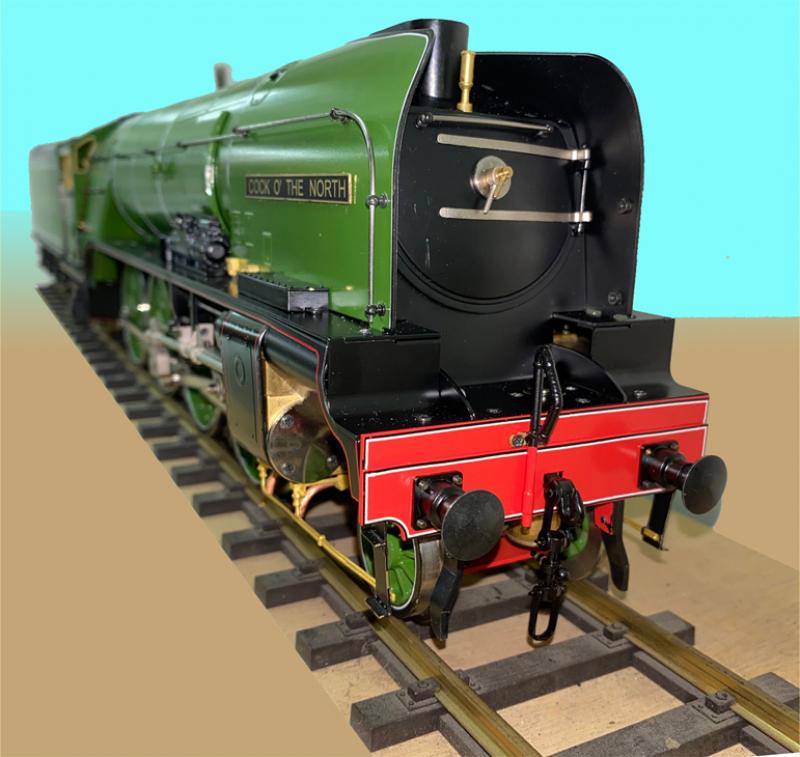

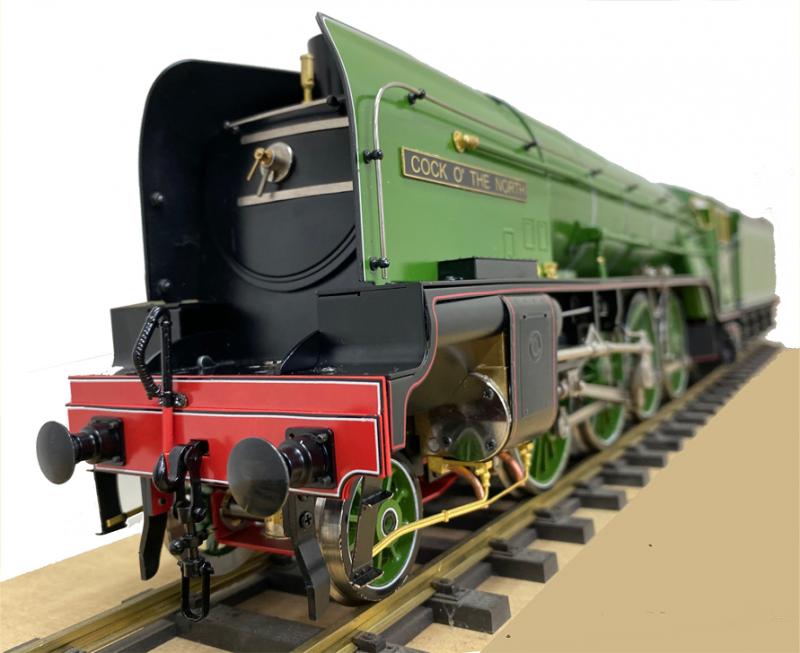

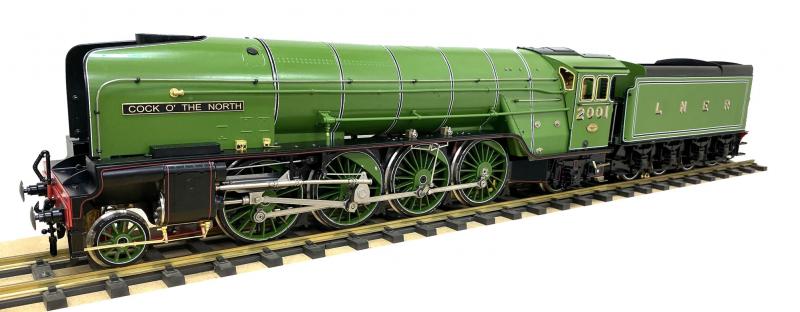

To avoid repeating the mistakes on the SNCF241P, after introducing the pilot model, we rarely hear orders for additional details that are not suitable for a kit-style live steam model. If you want to express your favorite details, please do your best. Like precision machinery, we offer the best P2 of the Gauge 1 Live Steam Kit at a reasonable price.
| Scale/Gauge |
1/32 , Gauge one (45mm) |
| Weight |
4kg (engine)+2kg (tender) |
| Length |
714.8mm(engine434.9mm+tender230mm) |
| Width |
85.8mm |
| Height |
124.5mm |
| Wheel Arrangement |
2 - 8 - 2 Mikado∈１Ｄ１∷stainless wheels |
| Driving Wheel |
57.4mm stainless wheels |
| Pilot and Trailer Truck Wheel |
30mm/35mm stainless wheels |
| Tender Truck Wheel |
36mm stainless wheels |
| Axle Driven Pump |
Bore / Stroke 5 x 5 mm |
| Cylinder |
3 Cylinders with drain valve Φ12 X20mm X3 |
| Valve Gear |
Walschaert |
| Boiler Type |
c type with 1 X Φ15 & 2 X Φ12 smoke tubes |
| Water Capacity |
280cc(ml) |

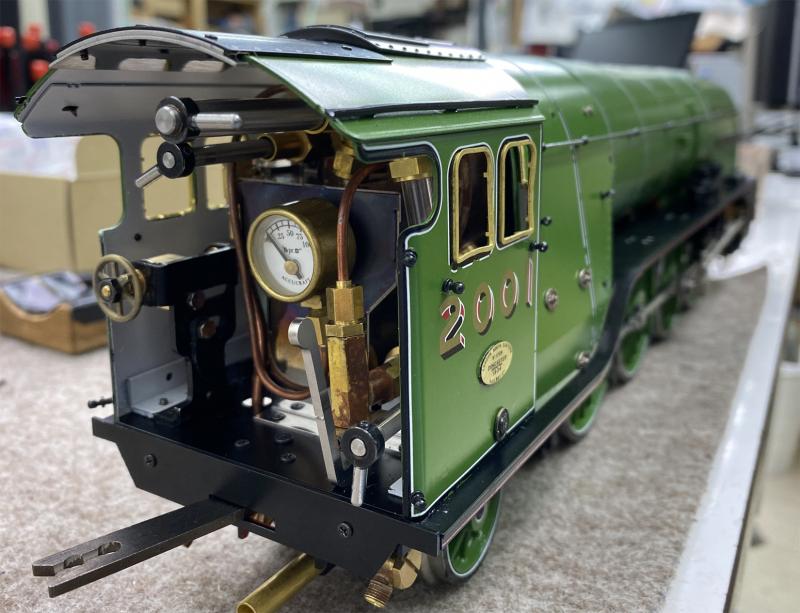

| Boiler Fittings |
2 x safety valves, water gauge, pressure gauge, throttle and blower valves, by-pass valve, blow-down valve, Whistle valve |
| Lubricator |
Roscoe displacement type |
| Tender |
Hand pump(BORE 11 mm ∵ STROKE 15 mm ) |
Water Tank Capacity
|
Water Tank capacity 300cc |
Fuel
|
Methylated alcohol |
| Fuel Capacity |
Alcohol Tank capacity 240 cc(at80% full) |
| Minimum Radius |
R2 |
|
