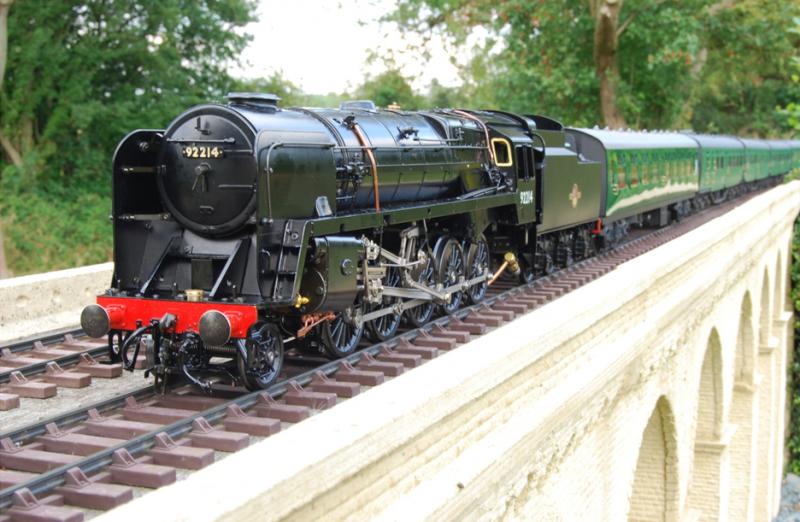

*The photo is our pilot model. Tender from the Battle of Britain class.
| Scale/Gauge |
1/32 |
| Weight |
|
| Length |
627 mm ( Engine 398 mm + Tender 229mm∷ |
| Width |
86 mm |
| Height |
125 mm |
| Wheel Arrangement |
2-10-0(DECAPO) |
| Driving Wheel |
φ46.8 mm |
| Pilot and Trailer Truck Wheel |
φ28 mm(Leading Truck Wheel) |
| Tender Truck Wheel |
|
| Axle Driven Pump |
Bore 5mm X Stroke 6mm |
| Cylinder |
2 Cylinders with Piston Valves/Steam Port φ2 X 6 & Drain Valve Boreφ13 mm X Stroke 22 mm |
| Valve Gear |
Walchaert, Valve travel 6 mm, Cut off 75% (full gear) |
| Boiler Type |
C type with φ8 mm water tube |
| Water Capacity |
Water 255 cc at 80% full |
| Boiler Fittings |
Regulator Valve, Blower Valve, Reverser Handle, Drain Valve Handle, By-pass Valve, 2 X Safety valves, Blow-down valve, Water Gauge, Pressure Gauge, and Super heater |
| Lubricator |
Roscoe Displacement Type |
| Tender |
Hand pump mounted |
Water Tank Capacity
|
|
Fuel
|
Methylated alcohol |
| Fuel Capacity |
180 cc(Removable alcohol tank) |
| Minimum Radius |
2 m |
|
