Almost every parts are Made in Japan
And export from Asterhobby Japan
| Scale/Gauge |
1:32 |
| Weight |
4.5kg |
| Length |
locomotive 397mm, tender 226mm |
| Width |
87mm |
| Height |
123mm |
| Wheel Arrangement |
4-6-0 |
| Driving Wheel |
cast iron, dia 58mm |
| Pilot and Trailer Truck Wheel |
pilot wheel : cast iron, dia 28mm |
| Tender Truck Wheel |
|
| Axle Driven Pump |
fitted on the second driving wheels axle |
| Cylinder |
2 cylinders with working piston and drain valves |
| Valve Gear |
walschaerts' valve gear |
| Boiler Type |
c type with two smoke tubes |
| Water Capacity |
210cc |

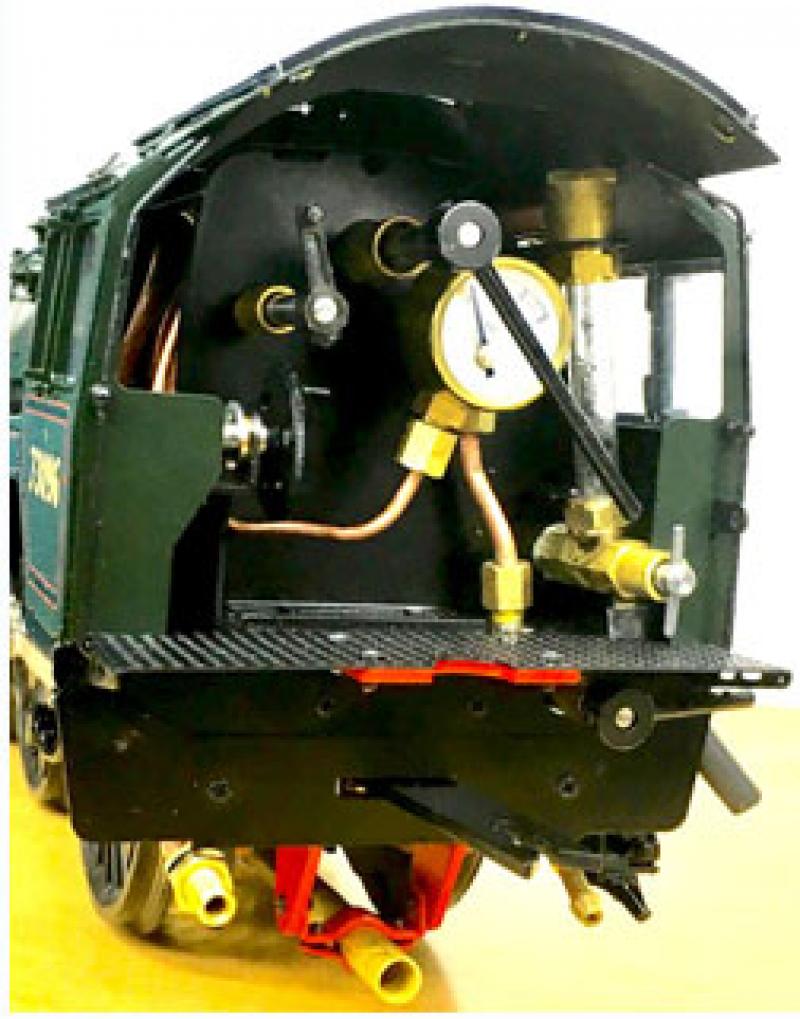

| Boiler Fittings |
two safety valves, pressure gauge, regulator/blower valve, check valve, blow down valve , superheater |
| Lubricator |
Roscoe displacement type |
| Tender |
|
Water Tank Capacity
|
250cc |
Fuel
|
alcohol |
| Fuel Capacity |
180cc |
| Minimum Radius |
2M |
|
