BR 52 Kriegslok

The BR-52 was a unique locomotive which came into existence as a result of German transportation needs during WWII. Working under the constraints of material and manpower shortages, the designers developed, step-by-step, a simplified configuration based broadly on the successful 2-10-0 BR-50 design. The BR-50 was comprised of about 6,000 separate parts – this number was reduced to about 5000 for the BR-52 - and of these 5,000 parts, 3,000 were carefully designed for manufacturing simplicity. The BR-50 frames were fabricated from 80 mm (approximately 3.12 inch), steel bar while the BR-52 frames were fabricated from 30 mm, (approximately 1.17 inch), steel plate. It required 17,650 man hours to build a BR-50 while a BR-52 could be built in only 11,650 man hours. The weight of a completed BR-52 and its Wannen, (bathtub), tender was 139 tons while the BR-50 and tender weighed in at 165 tons. A total of 15,000 BR-52s were ordered and it was planned to manufacture 500 of them per month utilizing 15 separate construction sites. In reality, the production rate of 500 per month was only achieved for three months during 1943. About 6,000 BR-52s were manufactured during the war but the design was so successful that several hundred more were constructed after the cession of hostilities thus represented the largest production run in German railway history. This is a remarkable fact since the locomotive was originally expected to have an economically useful lifetime of only about five years! In reality, some of them have operated, unaltered, for as long as 40 years which is a tribute to the soundness of the basic design and the skill of the designers. BR-52s were the backbone of the reconstruction and faithfully served the railway administrations of several countries. Approximately 200 BR-52s have been preserved and are in museums, private collections or are on display as monuments. Aster has chosen to model three BR-52 liveries in Gauge 1; 52 1325 of the Deutsche Reichsbahn as built by DWM in Posen; 52 3322 built after the war by Jung for the Railway of the Saar; and 52 2347 built at the beginning of 1953 by Henschel and fitted with a chimney cap for frost protection but without Witte smoke deflectors - it is painted in the original war gray livery.

Scale/Gauge 1/32, Gauge one (45mm)
Weight 6.6kg (Engine 4.7kg + Tender 1.9kg)
Length 739.4 mm
Width 98 mm
Height 138.3 mm
Wheel Arrangement 2 -10- 0 Decapod

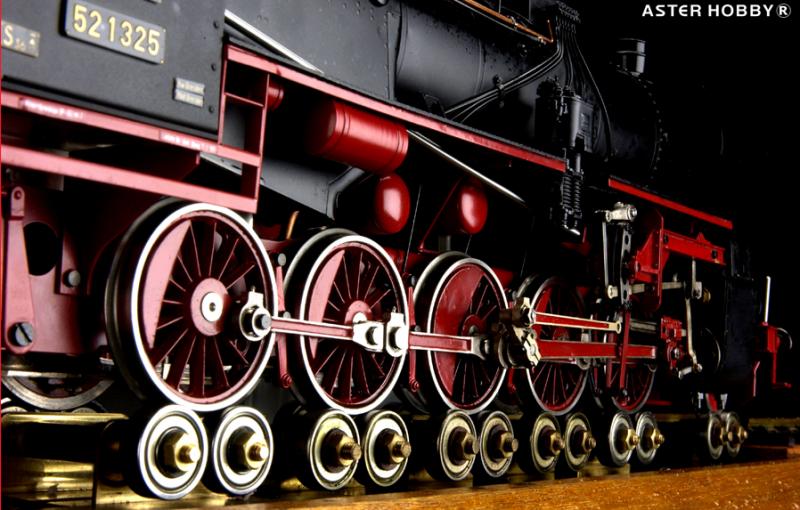

Driving Wheel 43.6 mm, Spoked
Pilot and Trailer Truck Wheel Dia. 26 mm Disc type
Tender Truck Wheel Dia. 26 mm Disc type
Axle Driven Pump Mounted on the main driver.
Cylinder 2 cylinders Bore 13 mm x Stroke 20 mm
Valve Gear Walschaert (lever type reverse)
Boiler Type C type 300cc at 70% full
Water Capacity Average working pressure 2.5 to 3.5 kg/cm2, 2 x safety valves, regulator & blower valve
Boiler Fittings Check valve, pressure gauge, water gauge. By-pass valve
Lubricator Roscoe displacement type embodied in a dummy air tank in the main frame
Tender Hand operation pupm mounted
Water Tank Capacity
280CC at 80% full
Methyl alcohol
Fuel Capacity 180cc at 80% full
Minimum Radius 2m
